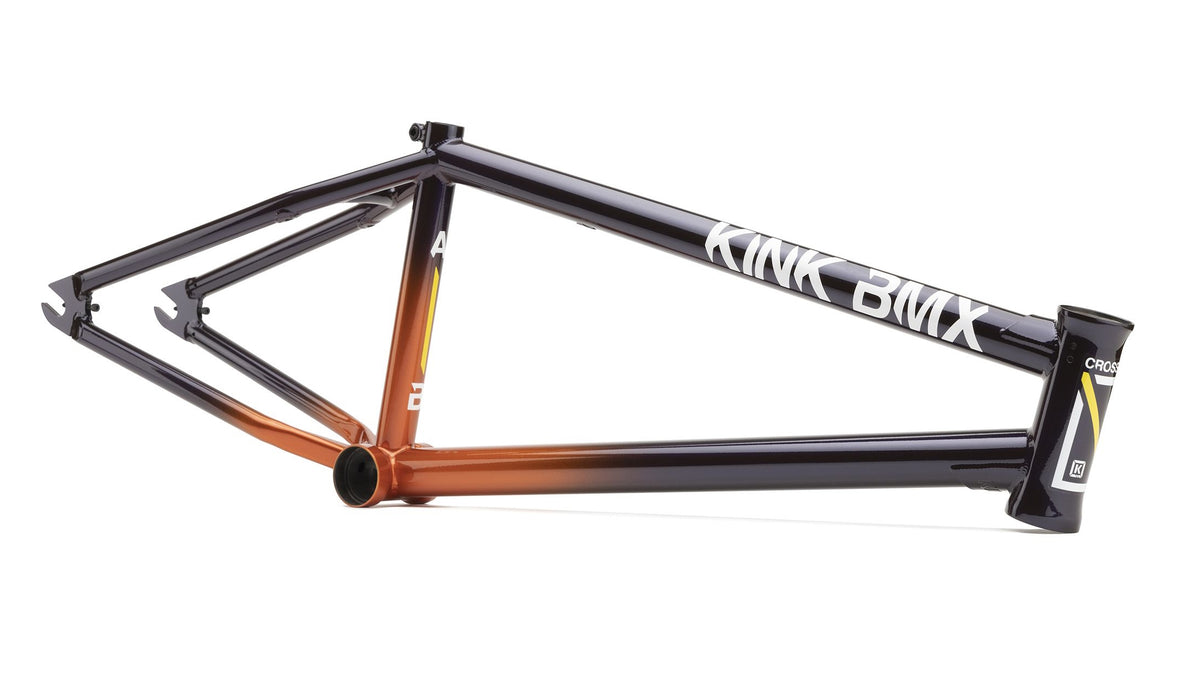

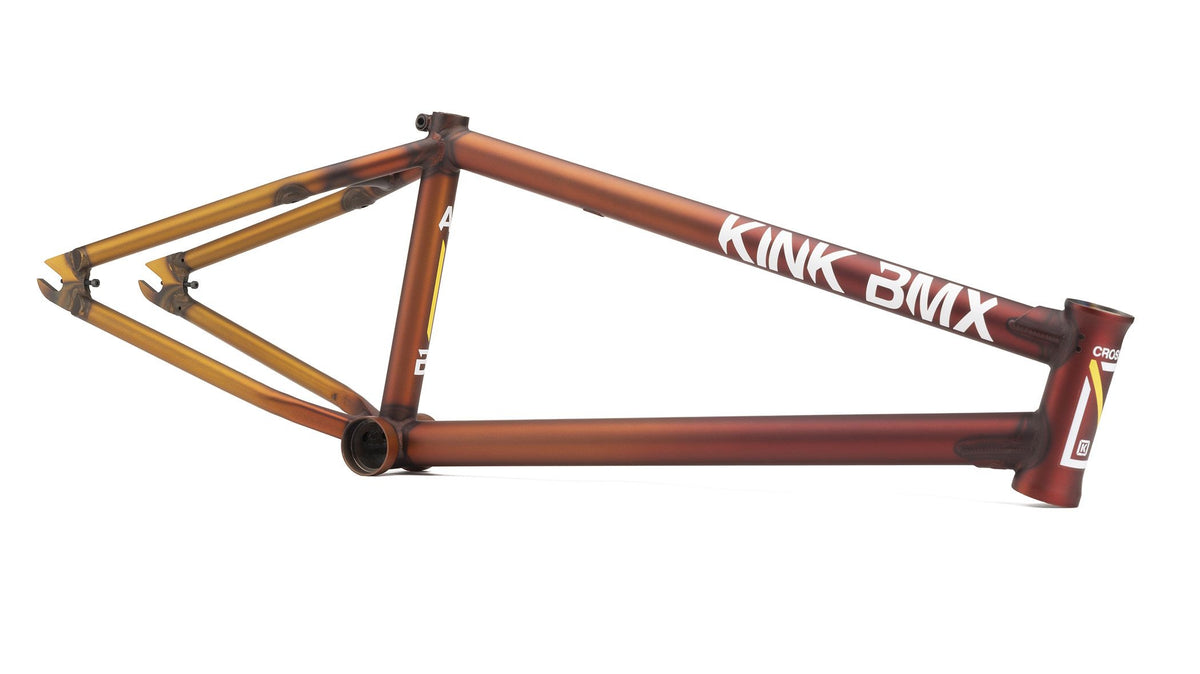

The Kink Crosscut is a modern-day beast of a frame. The double-butted toptube & downtube w/ both upper & lower gussets will stand up to the hardest riding, & the short 12.5” chainstay length & quick 75.5° headtube angle make this frame nice & nimble. The generous 9.25” standover height gives the frame a clean & traditional look, but w/ the aforementioned modern-day geometry. The all new investment cast chainstay yoke enables you to ride any modern tire size up to 2.55” & run your choice of 25t or 28t sprocket. This frame also comes standard w/ an integrated seat post clamp, integrated chain tensioners, & removeable brake mounts.
Toptube Sizes: 20", 20.5", 20.75",21"& 21.25"
Chainstay Length: 12.5" Slammed
Bottom Bracket Height: 11.6"
Standover Height: 9.25"
Headtube Angle: 75.5°
Seattube Angle: 71°
Material: 100% 4130 Chromoly Tubing
Headtube: Integrated Campy Spec
Dropouts: Laser Cut w/ Integrated Chain Tensioners
Bottom Bracket: Internally & Externally Machined Mid BB
Braking: Removable
Gussets: Toptube & Downtube
Seat Clamp: Integrated
Weight: 5lb 4oz (20.5")
