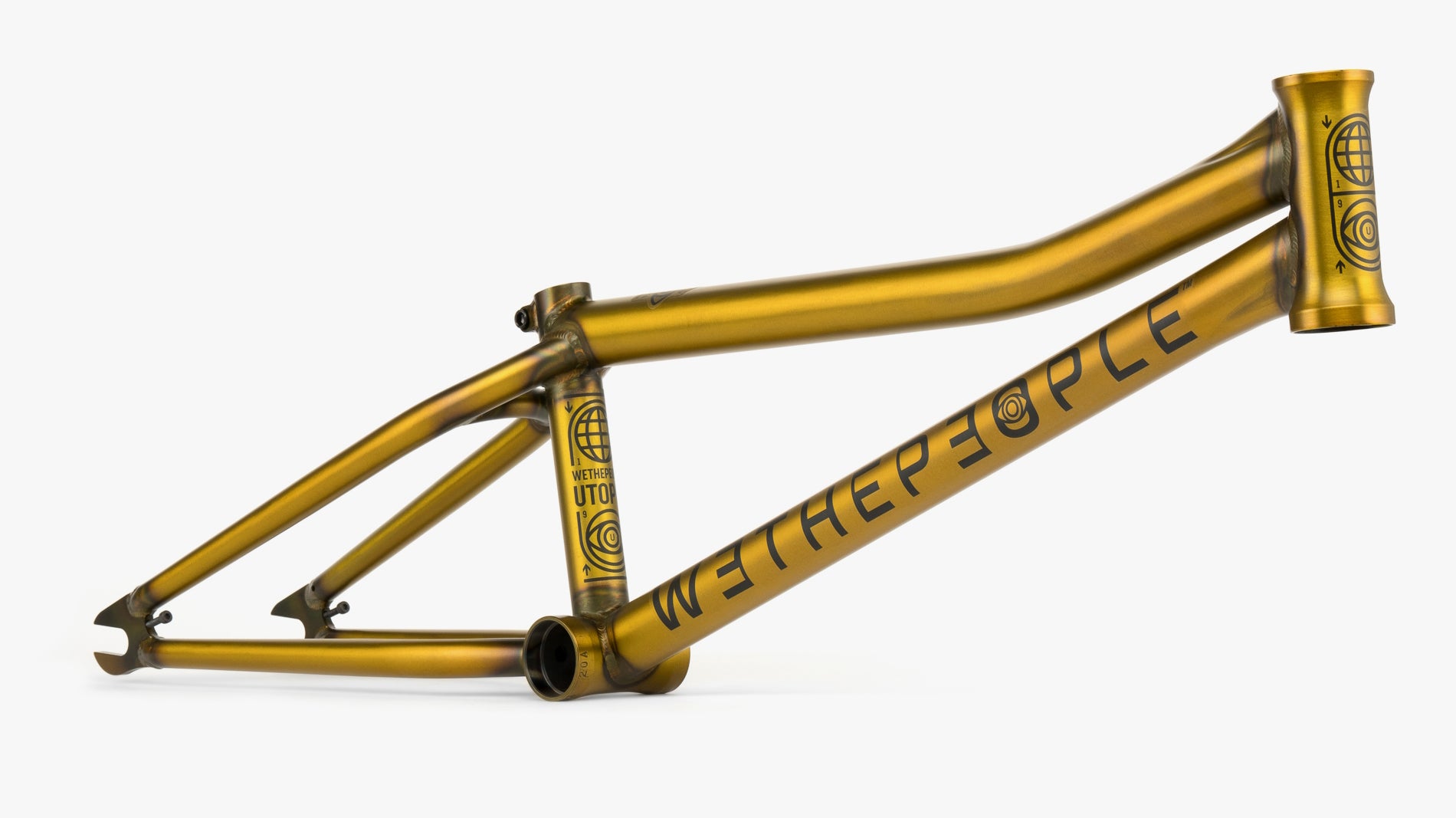

- TECHNICAL STREET/FLATLAND FRAME, SHORTER TOP TUBE & LOWER SEAT TUBE FOR YOUNGER RIDERS
- HYDROFORMED TOP & DOWN TUBE FOR SUPERIOR STRENGTH & STIFFNESS
- KINKED TOPTUBE FOR INCREASED FOOT CLEARANCE
- FRAME COMES W/ 14MM SLOT DROPOUTS
- EXTRUDED TOP TUBE W/ INTEGRATED THREADS FOR CABLE GUIDES
- TAPERED SEAT STAYS & CHAIN STAYS W/ BULLET TIPPED ENDS
- CURVED SEAT STAY BRIDGE & CHAIN STAY BRIDGE
- WIDER REAR TRIANGLE ALLOWS CLEARANCE FOR A 2.3" TIRE
- WTP TOP TUBE & DOWN TUBE GUSSET
- 6MM SEAT CLAMP BOLT
- INCLUDES LIFETIME GUARANTEE
COLORS: Black, Matte Trans Gold & Matte Trans Steel Grey
WEIGHT: 4.27LBS / 1.92KG (20”)
GEOMETRY:
TOP TUBE LENGTH: 19" & 20"
CHAIN STAY LENGTH: 12.4" - 13.2" - OPTIMIZED FOR 12.5/12.75" W/ 25-9
HEAD TUBE ANGLE: 75°
SEAT TUBE ANGLE: 71°
BB HEIGHT: 12"
STANDOVER HEIGHT: 6.2"
